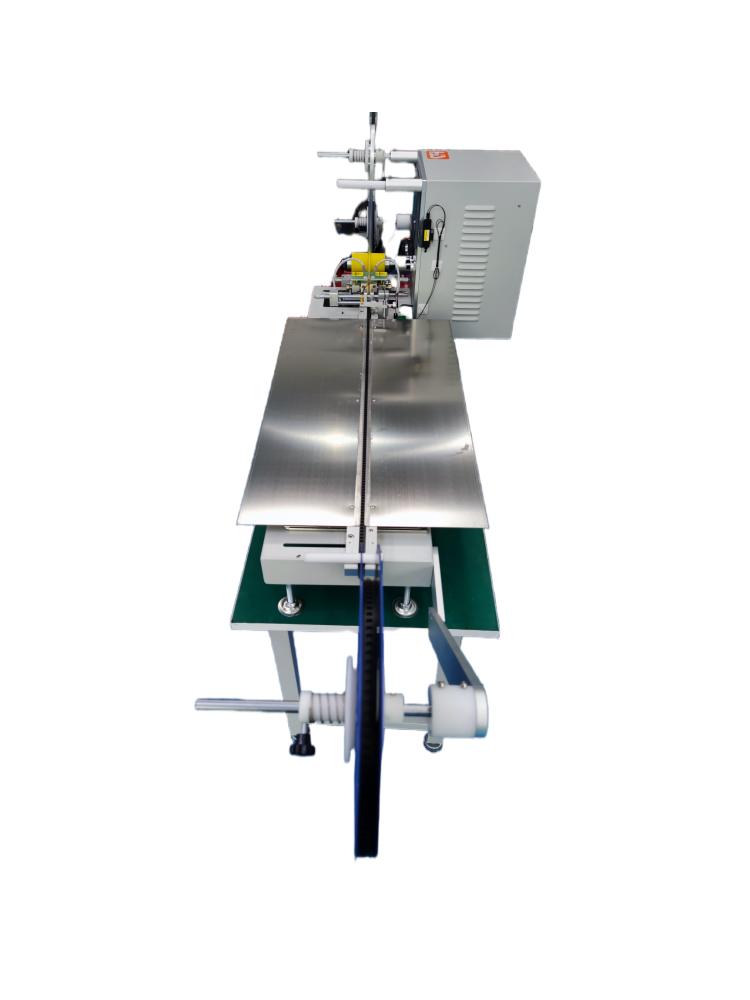

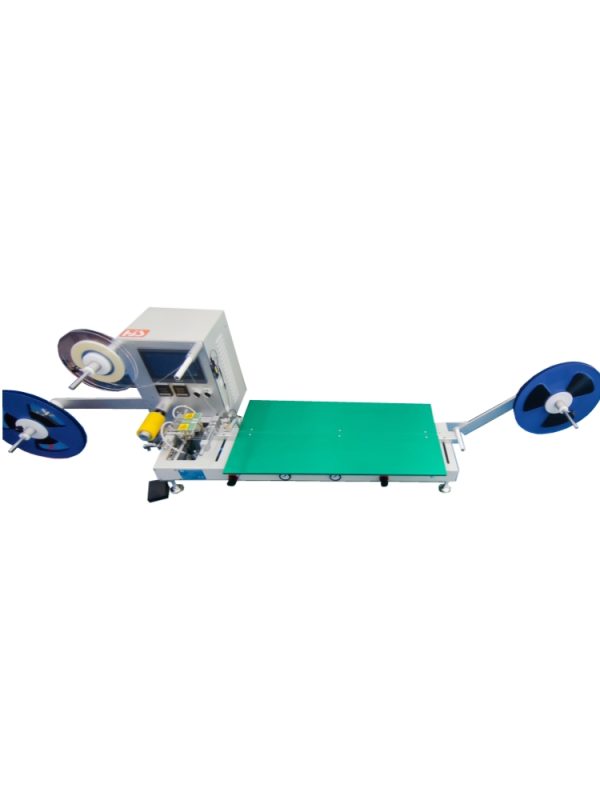

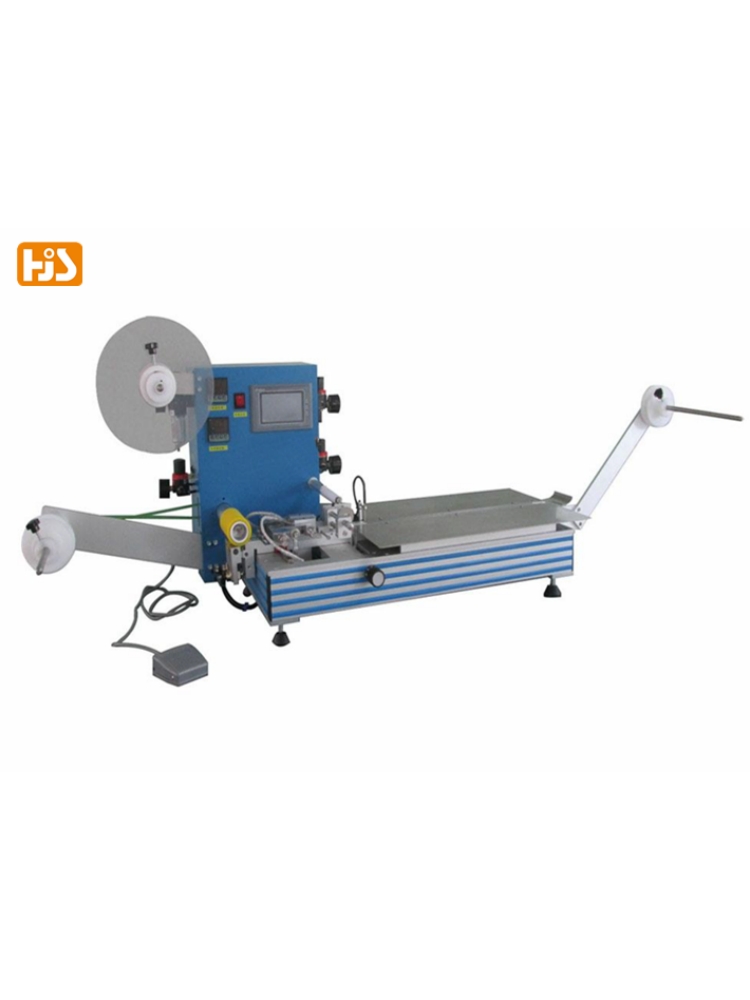

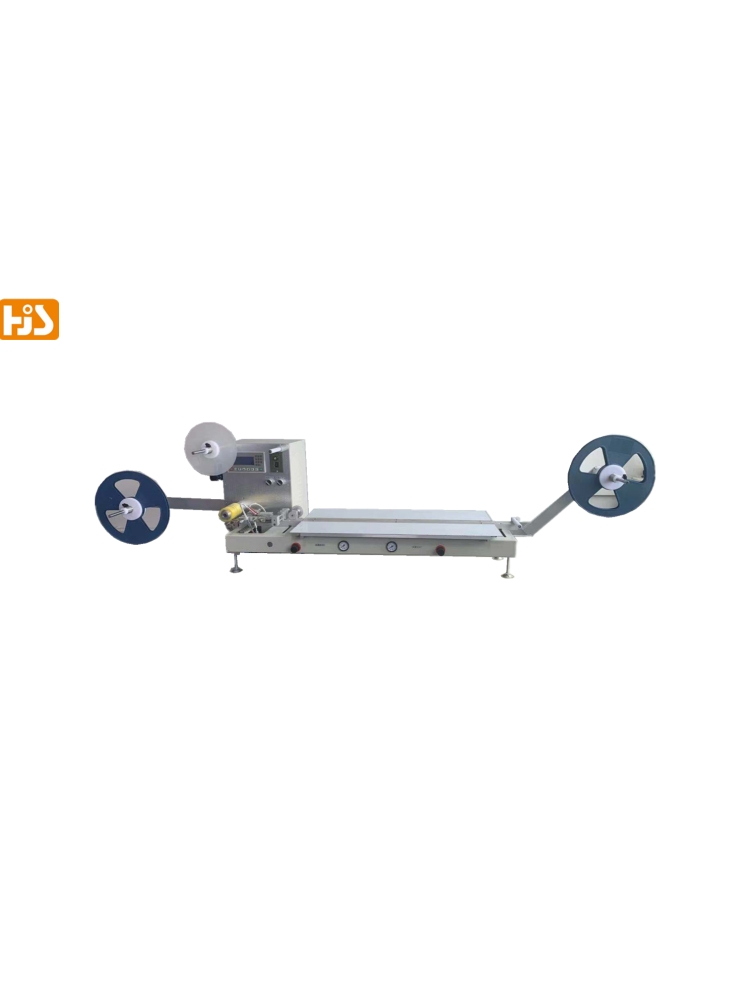

Semi-auto Taping Machine HJC-1000
Name:Professional Semi-Auto SMD Taping Machine for SMD components packaging
Model: HJC-1000
Use: the taping packages of a variety of surface mounting devices (SMD)
Flexible, easy-to-use, make HJC-1000 a perfect choice for manual taping.
smd tape and reel machine|semi-automatic smd taping machine|smd feeder machine|smd packaging machine|smd taping equipment|manual smd taping machine|smd taping system
Features:
- Packing mode: manual loading, automatic sealing and taping.
2. HMI: touch-screen.
3.Taping speed: adjustable.
4.Count by fiber-optical sensor.
5.Can be controlled by pedal or manual.
6.Can be used with EIA-481 standard plastic reels(7″,13″,15″,22″,and 24″).
7. Independently sealing pressure control
| Model | HJC-1000 Semi-auto Component Taping Machine |
| Feeding | suitable with ELA-481 standard wheel and cover tape |
| Tape width | 8mm-72mm |
| Control system | In-built HMI |
| Temperature control | two heads and independent PID temperature control, temperature range is 20-200°C |
| Taping speed | 3000-7000PCS/hr. According to specific Component |
| Calculator | count by fiber-optical sensitive |
| Package type | self adhesive or hot sealing |
| Selective configuration | — |
| Weight | 50KG |
| Mchine Dimension | 1650*460*580mm (L*H*W) |
| Power supply | AC200V / 50HZ |
| Pressure | 3.0kg/cm2 (0.3Mpa) |
| Carrier tape empty alarm | not available |
| Cover tape empty alarm | not available |
| Empty pocket detection | available |
| Counter Qty/Reel | available(encoder) |
| Component Orientation alarm | Non standard configuration/Optional sensor and image detection system |
| Carrier to cover weld strength check | Need “Peel force tester” for check |
| Setup time for reel changeover | 2~3minutes |
| Setup time for model changeover with different tape width | 2~3minutes |
| Machine supply lead time | 5days (standard) |
| Model | HJC-1000 | HJC-1000A | HJC-1000B | HJC-1000C | HJC-1000D |
| Function | Normal model without leakage detection | Normal model | Model with CCD | Long length model | Normal model |
| HMI | Not touch screen | Normal touch screen | Normal touch screen | Normal touch screen | Touch screen with wifi module |
