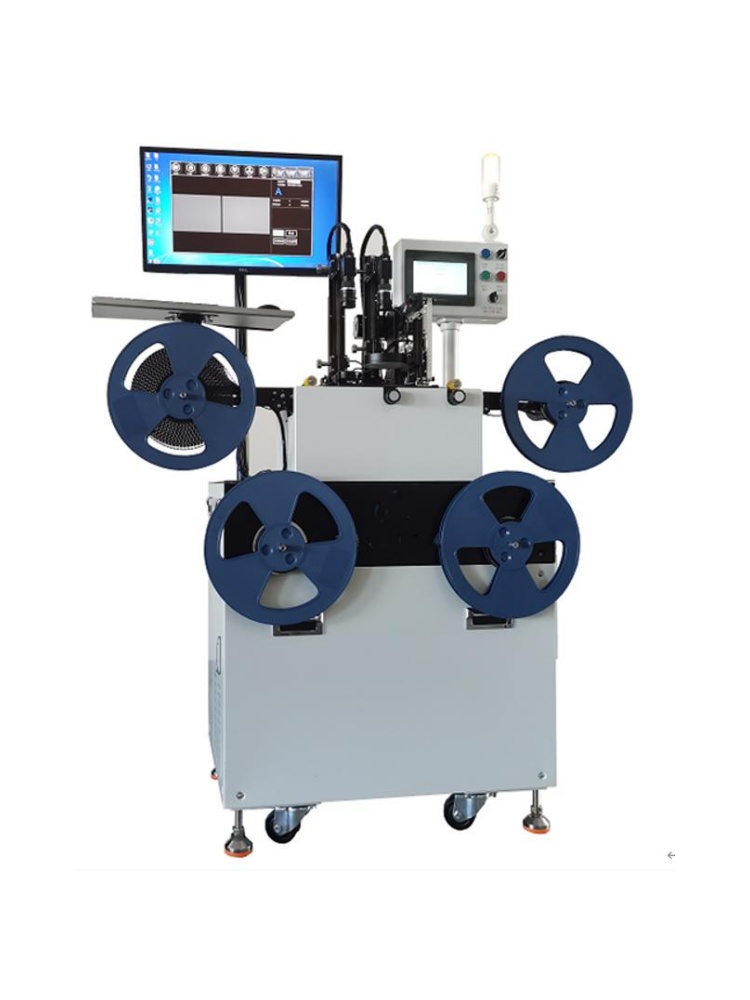

Carrier Tape Inspection Machine HJC-IC20C
Name: Carrier Tape Inspection Machine
Model: HJC-IC20C
Use: Used for reel tape inspection, CCD can check component orientation, missing and defective.
reel tape inspection machine|tape and reel inspection|reel tape inspection equipment|automated reel tape inspection|reel tape inspection solutions|carrier tape inspection
Features:
- Track width is adjusted within the range of 8-56mm
- Track clamping cavity, stable control and simple adjustment
- The tape retracting and releasing mechanism is convenient for clamping all tape with plastic or paper reels conforming to EIA-481A standard
- Stable startup, stepless speed regulation, button control
- CCD inspect component orientation with mark points or characters;
Voltage | AC 220V 50HZ |
Power | 1.5KW |
Applicable products | SOP,SOT,SOD 、SSOP,TSSOP,MSOP,LSOP,QFN、QFP、BGA etc. |
Speed | SOP8 example ≥ 5000PCS |
Carrier tape width | 8mm-56mm |
Control system | PC+PLC+HMI |
Size | 1200*600*1400MM |
Options:
- Machine can be designed as desktop model:
